Discussion Starter · #1 · (Edited)
still not boosting past zero

check my setup below


just got my swap running but the vaccum stays at 20 at idle but it wont go past zero once i try to boosting , it idles fine and the engine sounds good ,it also blows off and you can hear the turbo spooling up but when i drive it it feel slow as shit and i cant get any pounds off boost . i think its bec the stock bov isnt blockoff but when i got it from jarco it as blocked off
or my lines are setup wrong

This setup is temp until i fig out whats wrong

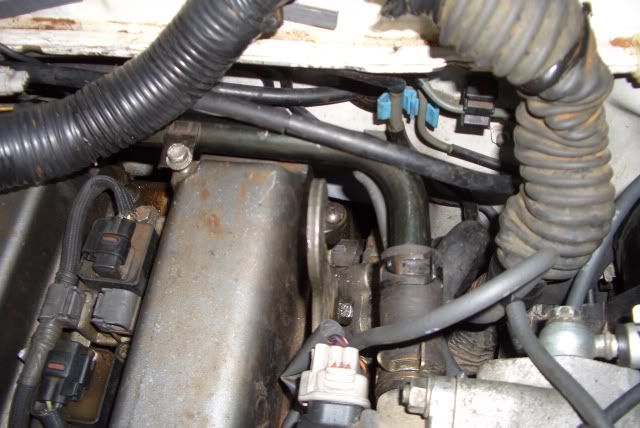

check my setup excuss the engine bay it just rad fluid my friend rushed doing a rad flush







http://img.photobucket.com/albums/v521/sj7/CIMG0462.jpg
http://img.photobucket.com/albums/v521/sj7/CIMG0461.jpg
http://img.photobucket.com/albums/v521/sj7/CIMG0456.jpg
http://img.photobucket.com/albums/v521/sj7/CIMG0459.jpg
http://img.photobucket.com/albums/v521/sj7/CIMG0453.jpg
http://img.photobucket.com/albums/v521/sj7/CIMG0452.jpg

this one is blocked off in the middle of the t
http://img.photobucket.com/albums/v521/sj7/CIMG0469.jpg

http://img.photobucket.com/albums/v521/sj7/d7c9ba9a.jpg


·
Registered
Joined
·
109 Posts
Yes, wrong wiring.

Look at the stock map. There are 3 wires, ground, power, and pressure signal. You must have hook up the signal wire into another power wire. I think the middle one is the signal wire.


·
Registered
Joined
·
242 Posts
Discussion Starter · #3 ·
KrippleTwin said:
Yes, wrong wiring.

Look at the stock map. There are 3 wires, ground, power, and pressure signal. You must have hook up the signal wire into another power wire. I think the middle one is the signal wire.
thanx ill try that


·
*SNICKER SNICKER*
Joined
·
725 Posts
I hate to say it but DUH!!! :rofl:

Yer running an aftermarket BOV, so YES you need to block off the port on the intake side where the stock BOV was, otherwise all the pressure your turbos are building is just venting into your engine bay!

It'd be kinda like not putting in the drain plug in the bathtub, and then running the water expecting it to fill up to take a bath. :1poke:

Block off that opening, and you'll build boost!


·
Registered
Joined
·
242 Posts
Discussion Starter · #6 · (Edited)
The intake side is block off but the bov outlet isn't I've been trying to find a rubber cap to cover it but I just couldn't find a one to cover it I went to lowes,ace,home depot it,when I got te swap the side where the bov hose goes into the intake pipe was alrdy block off but the bov isnt , I just wanted to make sure the lines were set up right bec I had to figure it out, I'm suprised jarco didn't notice that it wasn't blocked off they gave me a extra set of turbos to swap out ,I might have a extra set of turbos in that case


·
Banned
Joined
·
1,731 Posts
I have a nice honda civic forsale, color changing paint and sick ass konig rims. Wanna trade?


·
Registered
Joined
·
242 Posts
Discussion Starter · #8 ·
Wrong forum take that to honda tech why would I wanna trade I have one for a beater. I hope my bov blockoff plate get finished today


·
Banned
Joined
·
1,731 Posts
christ that engine is a vacuum line nightmare!!! I have 5 total on my car, none chained..
PS pump, MAP, FPR, BOV, Heater.


·
Not so boring anymore
Joined
·
7,085 Posts
woah.. OT but you got your cruse control to hook up? use one from your clip or the stock one? it work?


·
Registered
Joined
·
242 Posts
Discussion Starter · #14 ·
tissimo said:
woah.. OT but you got your cruse control to hook up? use one from your clip or the stock one? it work?
but that would mess up my boost would it im just trying to get my car boosting right then i clean up the mess


·
Not so boring anymore
Joined
·
7,085 Posts
Supra Junky 101 said:
That's a kickdown for an auto tranny IIRC. :sadance:
pic 452 it looks like it wraps to the cruise control actuator.. and the throttle cable goes off to the right side then loops back to the left( assuming jza70 cable).. i could be wrong though..

did you take off your isc for anything.. there is a 1 way check valve in there.. if its backwards it wont seal properly..


·
Registered
Joined
·
586 Posts
tissimo said:
pic 452 it looks like it wraps to the cruise control actuator.. and the throttle cable goes off to the right side then loops back to the left( assuming jza70 cable).. i could be wrong though..

did you take off your isc for anything.. there is a 1 way check valve in there.. if its backwards it wont seal properly..
Ditto... I think the kickdown for the auto runs on the bottom by the ... aww forget it. My brain isn't working. :sadance: I dont think I can explain it correctly. Anyways, I agree with tissimo.


·
Registered
Joined
·
242 Posts
Discussion Starter · #19 ·
tissimo said:
pic 452 it looks like it wraps to the cruise control actuator.. and the throttle cable goes off to the right side then loops back to the left( assuming jza70 cable).. i could be wrong though..

did you take off your isc for anything.. there is a 1 way check valve in there.. if its backwards it wont seal properly..
me and my friend didnt hookup the speed control up we blocked it off


·
*SNICKER SNICKER*
Joined
·
725 Posts
much better pics of your vaccum lines... :)

the first thing I see right off the bat, is where you are pulling vaccum for your MAP sensor!!

That is wrong. There is a vaccum line comming off the intake plenum, between the plenum and the intake valve cover, that has a filter that is JUST for the MAP sensor. Get that re-routed first. (if you need, I can take a picture of mine so you can see what I am talking about). Other than that, the 1JZ doesn't care too much about where you pull vaccum from.

http://www.1jz-gte.us/documents/SubDocs1/Fig1708.pdf

Follow that vaccum diagram from Rick's Place, it works! It is for the 1JZ engine!

Once you have that right, if you still have no boost, then we can go from there.
