◊ Gain Adjustment Worksheets - SAFR, SAFC I, II & NEO, MAFT Pro & GenII ◊

◊ Gain Adjustment Worksheets - SAFR, SAFC I, II & NEO, MAFT Pro & GenII ◊

Excel worksheets for popular piggyback fuel controllers.
Import your wideband data and calculate you gain adjustments.
*Not responsible for any way you use these worksheets. Verify your own math.

Current version - 6.9.27


> SAFR Gain Adjustment worksheet .zip 167KB
alternate: http://tinyurl.com/4ykxsg
11 set points, 50 rpm increments

Use the following worksheets for tuning the device Hi load settings:

> NEO Gain Adjustment worksheet .zip 169KB
alternate: http://tinyurl.com/3pyhnw
16 set points, 50 rpm increments
> NEO Easy Gain Adjustment worksheet .zip 167KB
alternate: http://tinyurl.com/4gbuua
8 set points, 50 rpm increments​

> SAFC II Gain Adjustment worksheet .zip 167KB
alternate: http://tinyurl.com/4a9b3w
12 set points, 200 rpm increments

> SAFC I Gain Adjustment worksheet .zip 167KB
alternate: http://tinyurl.com/4jqx2z
8 set points, 500 rpm increments

> MAFT Gen II & Pro Gain Adjustment worksheet .zip 160KB
alternate: http://tinyurl.com/4fnypy
14 pre defined rpm points





·
RIP 86.5 N/A, Hello 90T
Joined
·
2,293 Posts
holy crap, im glad I skipped piggyback and went straight to standalone. You have completely went over my head.

~Dan


·
Supranian
Joined
·
2,007 Posts
That is awesome, thanks for the hookup !!!


·
United States of America
Joined
·
1,469 Posts
Discussion Starter #5
Current version - 6.9.27
• made EGT column include average for that rpm range & max for that rpm range


·
United States of America
Joined
·
1,469 Posts
Discussion Starter #6 (Edited)
• added NEO Easy worksheet

Example of Neo Pro and Neo Easy worksheets with User Selected rpm points.



·
Sir Digby Chicken Ceasar
Joined
·
519 Posts
Thanks for the great work.


·
Registered
Joined
·
280 Posts
Are these spreadsheets still available? If you need a place to host them permanently I can provide that.


·
United States of America
Joined
·
1,469 Posts
Discussion Starter #12

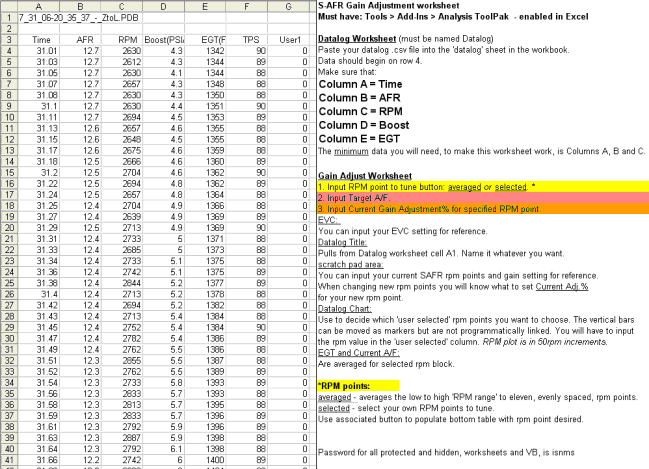

There is an instruction tab to show how to use it. I updated the img url to show screen shots of workbook.
